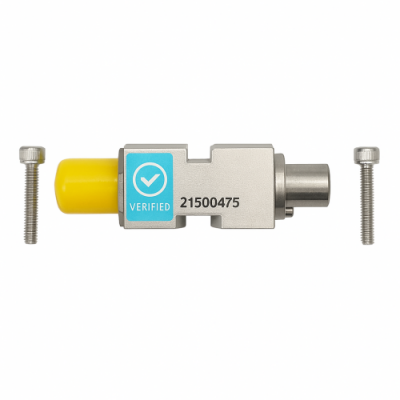

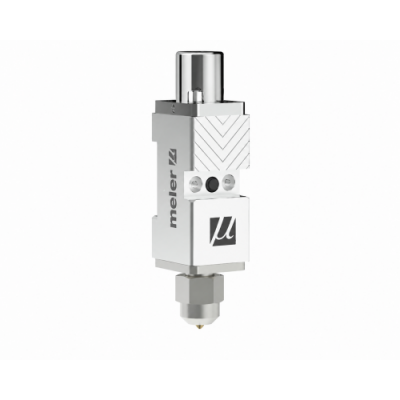

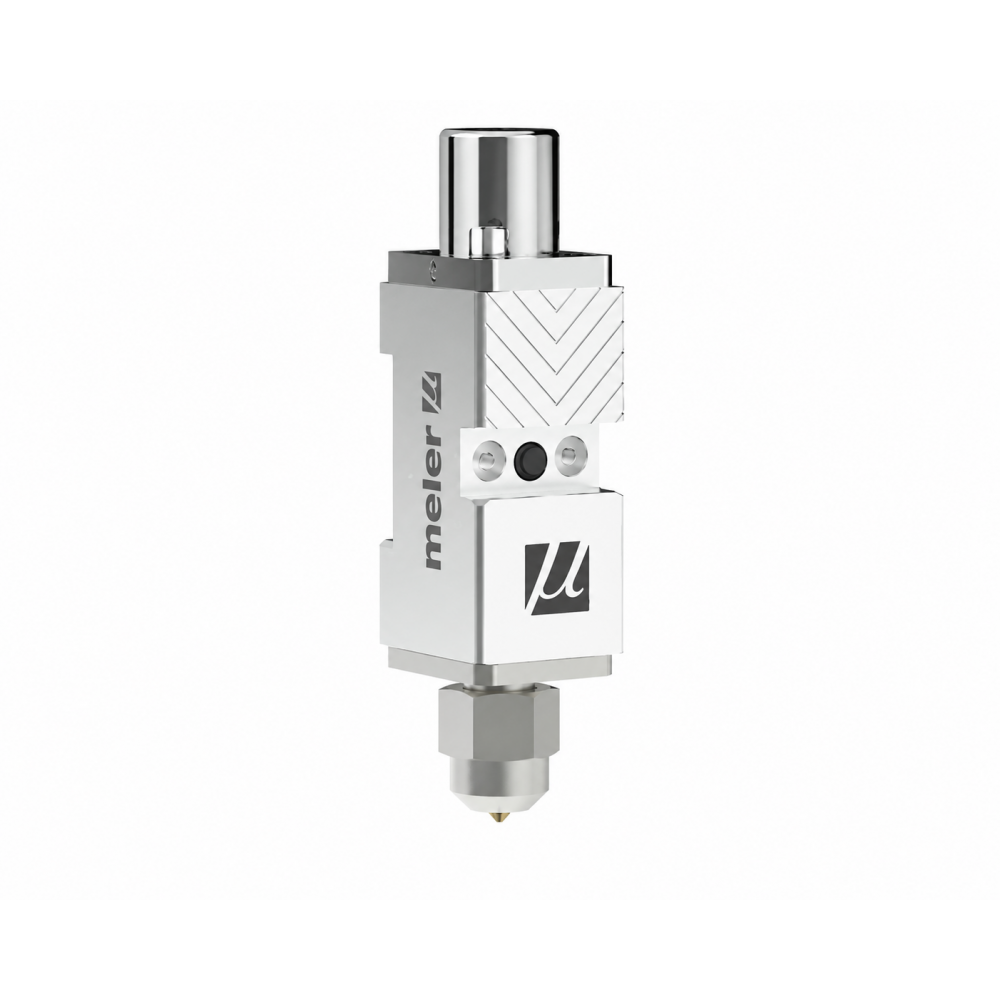

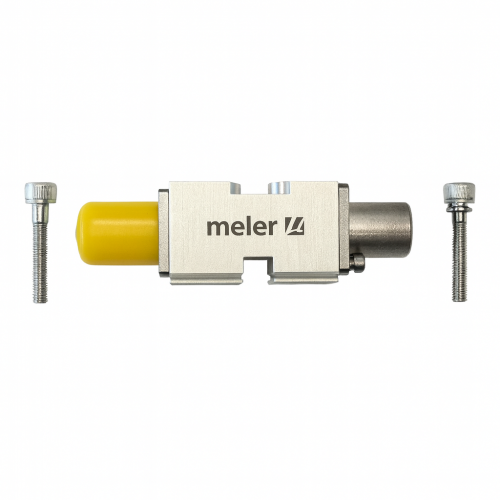

Meler NDD.CCD 0.20 V2022 hot melt application module (106300440)

Meler NDD.CCD 0.20 V2022 hot melt application module (106300440)

€871.20
Tax included
Meler NDD.CCD 0.20 V2022 (Art. 106300440) is a premium industrial hot melt module featuring Zero Cavity technology for maximum cleanliness and precision. The pneumatic Air Open–Air Close actuation provides a sharp cut-off for the adhesive flow, helping eliminate dripping and stringing, while the zero-cavity conical design reduces adhesive build-up and nozzle clogging risk. Built for high-speed packaging and graphic arts applications.

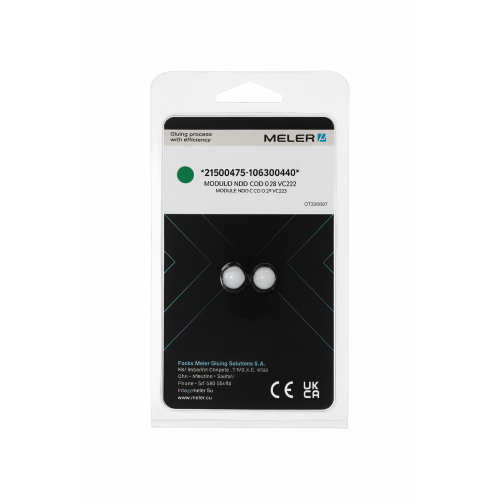

*2I500475-106300440*
MODULO NND.CCD 0.20 V2022
Quantity

You have questions about Meler NDD.CCD 0.20 V2022 hot melt application module (106300440) ?
Our specialists will consult and answer your questions.

Ask question
+370 610 81351
  Secure Payment

Pay via E-Banking, Bank Card or at a Point of Sale.

  Fast Delivery

Fast order processing and fast delivery.

  Free Pickup

Pick up at Kalvarijos str. 130, Kaunas.

Product photos are for illustrative purposes only, the original products may differ slightly from those shown in the online store.

Description

Technical data
Manufacturer: Focke Meler Gluing Solutions (Spain)
Model: NDD.CCD 0.20 V2022
Article no.: 106300440
Actuation: pneumatic Air Open–Air Close
Nozzle: 0.20 mm (interchangeable)
Max temperature: 200°C
Max hydraulic pressure: 80 bar
Air pressure: 4–5.5 bar
Max frequency: up to 4800 cycles/min (NC series)
Compatibility: Meler NC and other compatible systems

Product Details
106300440

Specific References

New product
