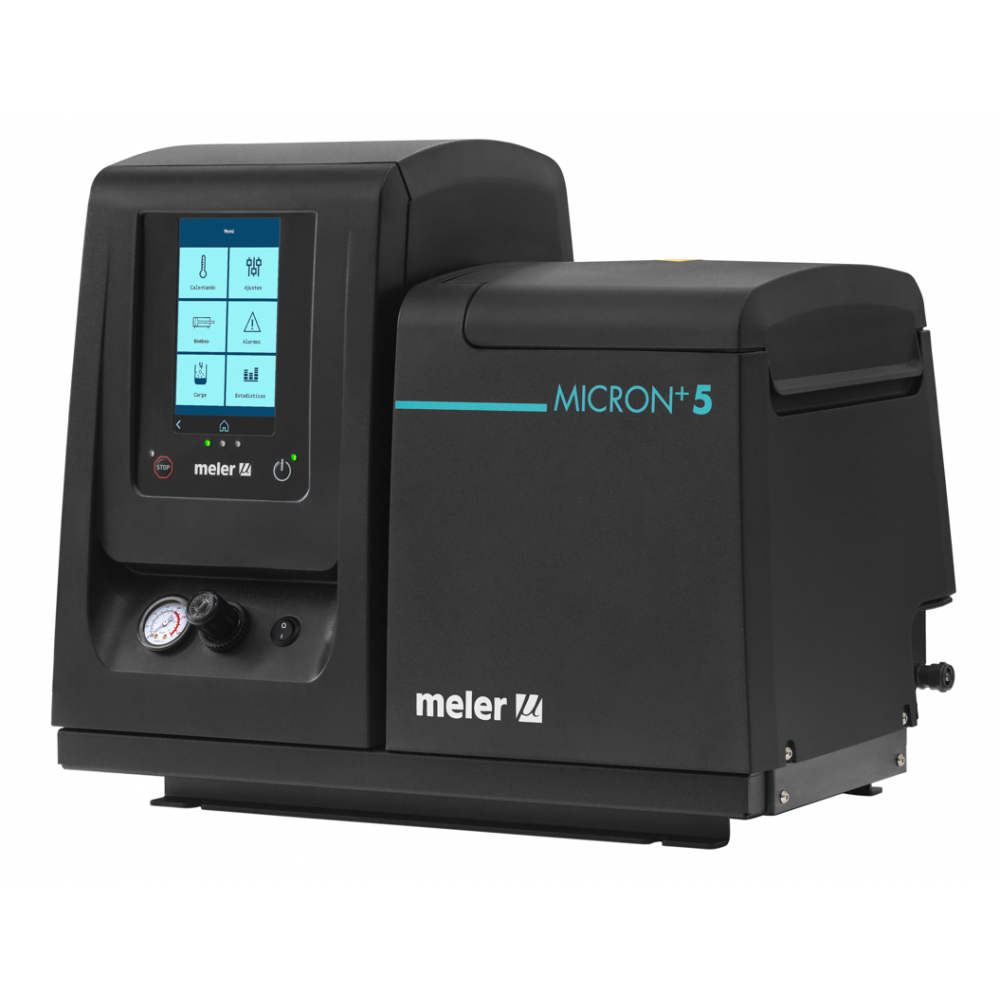

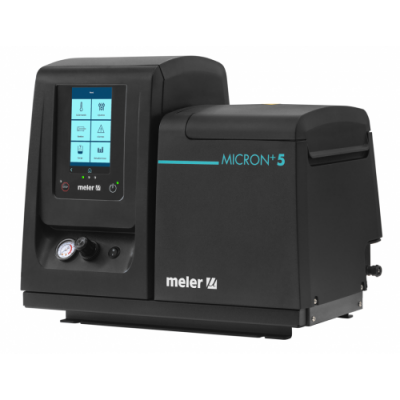

Meler Micron+ 5 series hot glue station

MELER MICRON+ 5 Hot Melt Adhesive Melter – Compact Industrial Adhesive Melting and Feeding System for Production Lines

MELER MICRON+ 5 is a compact industrial hot melt adhesive melting and feeding unit designed for production lines that require precise adhesive delivery, stable operation, energy efficiency, and user-friendly control. It is the smallest model in the MICRON+ series, making it suitable for companies that need a reliable, easy-to-integrate, and modern hot melt adhesive system.

MICRON+ 5 is particularly suitable for packaging, carton sealing, furniture, mattress, textile, label, paper, and other production lines where adhesive consumption is relatively low, but precision, clean operation, and low operating costs are important.

Price shown is a starting price. The final price may vary depending on the selected configuration, pump type, number of outputs, and optional accessories.

Key Benefits

✔ Compact MICRON+ 5 model – easy to integrate into production lines

✔ Tank capacity – 5.15 L

✔ Melting capacity – up to 9 kg/h

✔ Up to 60% lower energy consumption

✔ 7-inch touchscreen for convenient and modern operation

✔ Uniform adhesive heating across the entire tank contact surface

✔ Reduced risk of adhesive overheating and degradation

✔ Cool Touch outer housing for improved operator safety

✔ Suitable for integration into automated production lines

✔ Remote access capability

✔ Ready for Industry 4.0 solutions

✔ Easy maintenance and cleaning, with a long service life

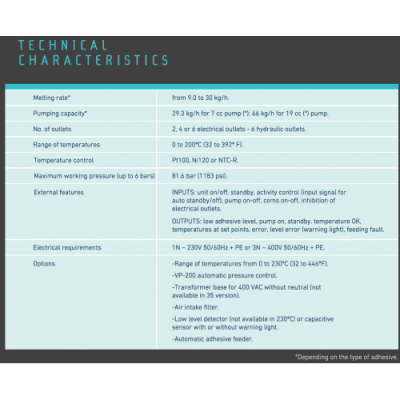

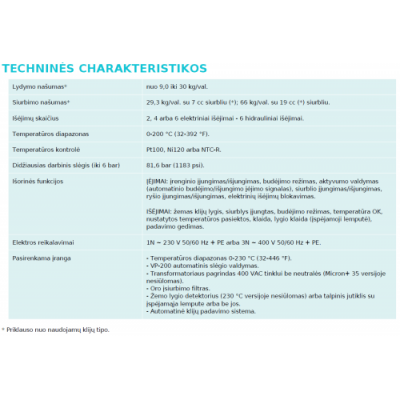

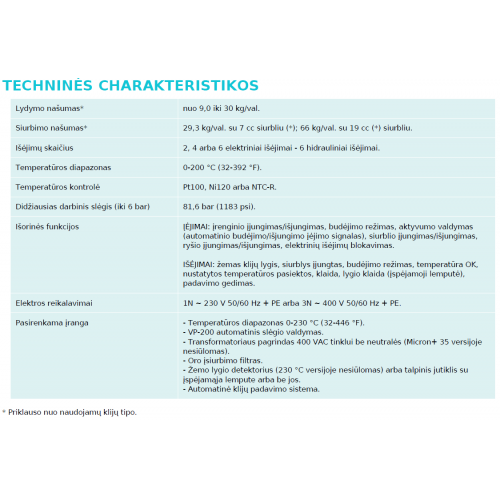

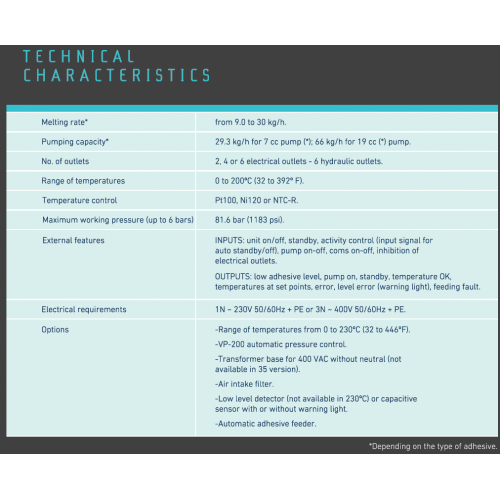

Technical Information

• Product type: Industrial hot melt adhesive melting and feeding unit
• Model: MELER MICRON+ 5
• Tank capacity: 5.15 L
• Melting capacity: up to 9 kg/h
• Pumping capacity: Depends on the selected pump
• Number of electrical outputs: 2, 4, or 6, depending on configuration
• Number of hydraulic outputs: Up to 6
• Operating temperature range: 0–200°C
• Optional temperature range: Up to 230°C
• Temperature control: Pt100, Ni120, or NTC-R
• Maximum operating pressure: Up to 81.6 bar / 1183 psi
• Power supply: 1N ~ 230 V 50/60 Hz + PE or 3N ~ 400 V 50/60 Hz + PE
• Control: 7" touchscreen
• Communication protocols: MODBUS RTU, PROFIBUS, PROFINET, ETHERNET-IP
• Compatible adhesives: Hot melt adhesives in pellet or block form, depending on the system configuration and adhesive type

Actual performance depends on the type of adhesive used, operating temperature, pump, and selected unit configuration.

User-Friendly Control

MELER MICRON+ 5 features a modern control system with a 7-inch touchscreen, providing quick access to the main unit settings and convenient control of the adhesive delivery process.

The control system allows users to:

• Control and configure different zones separately
• Assign individual names to zones
• Set operating schedules
• Manage alarms
• Use password protection
• Control the unit from the main production machine
• Use network connectivity
• Perform updates, backups, and data logging via USB

Connectivity and Integration

MICRON+ 5 is designed for integration into automated production systems. The unit supports industrial communication protocols:

MODBUS RTU • PROFIBUS • PROFINET • ETHERNET-IP

Remote access to the unit is also available, allowing users to control and configure the system and monitor operating parameters remotely. This is particularly useful for manufacturing companies seeking to improve process efficiency and integrate adhesive application equipment into their overall production system.

Efficient Adhesive Heating

The consistent MICRON+ 5 heating system ensures uniform temperature distribution across the entire tank contact surface. This helps reduce the formation of hot spots and the risk of adhesive overheating while contributing to more consistent adhesive quality.

This solution helps ensure:

• Uniform adhesive melting
• More stable adhesive delivery
• Reduced risk of adhesive degradation
• Lower energy consumption
• More efficient production processes

Optional Features

Depending on the selected MICRON+ 5 configuration, optional equipment and features may include:

• Automatic VP-200 pressure control
• Automatic adhesive feeding system
• Low adhesive level detector
• Air intake filter
• Integrated pattern / dispensing cycle controller
• Removable HMI screen
• Temperature range up to 230°C
• Various pump and output configurations

Applications

• Packaging lines
• Carton sealing and gluing
• Corrugated cardboard packaging production
• Furniture manufacturing
• Mattress production
• Textile industry
• Wood and panel production
• Label, paper, and printing industries
• Automatic and semi-automatic production lines
• Industrial hot melt adhesive dispensing processes

Who Is MICRON+ 5 Best Suited For?

MELER MICRON+ 5 is recommended for manufacturing companies that require a compact yet advanced hot melt adhesive melter with intelligent control, low energy consumption, and extensive production line integration capabilities.

This model is suitable when:

• Adhesive consumption is relatively low
• Precise and stable adhesive delivery is required
• A compact unit design is important
• Touchscreen control is required
• Integration into an automated production line is planned
• Industry 4.0 and remote control capabilities are important

MELER MICRON+ 5 is a professional solution for manufacturing companies looking for a compact, energy-efficient hot melt adhesive melting and feeding system that can be easily integrated into their production processes.

Contact us for information on the exact MICRON+ 5 configuration, optional accessories, pump type, and final price.
