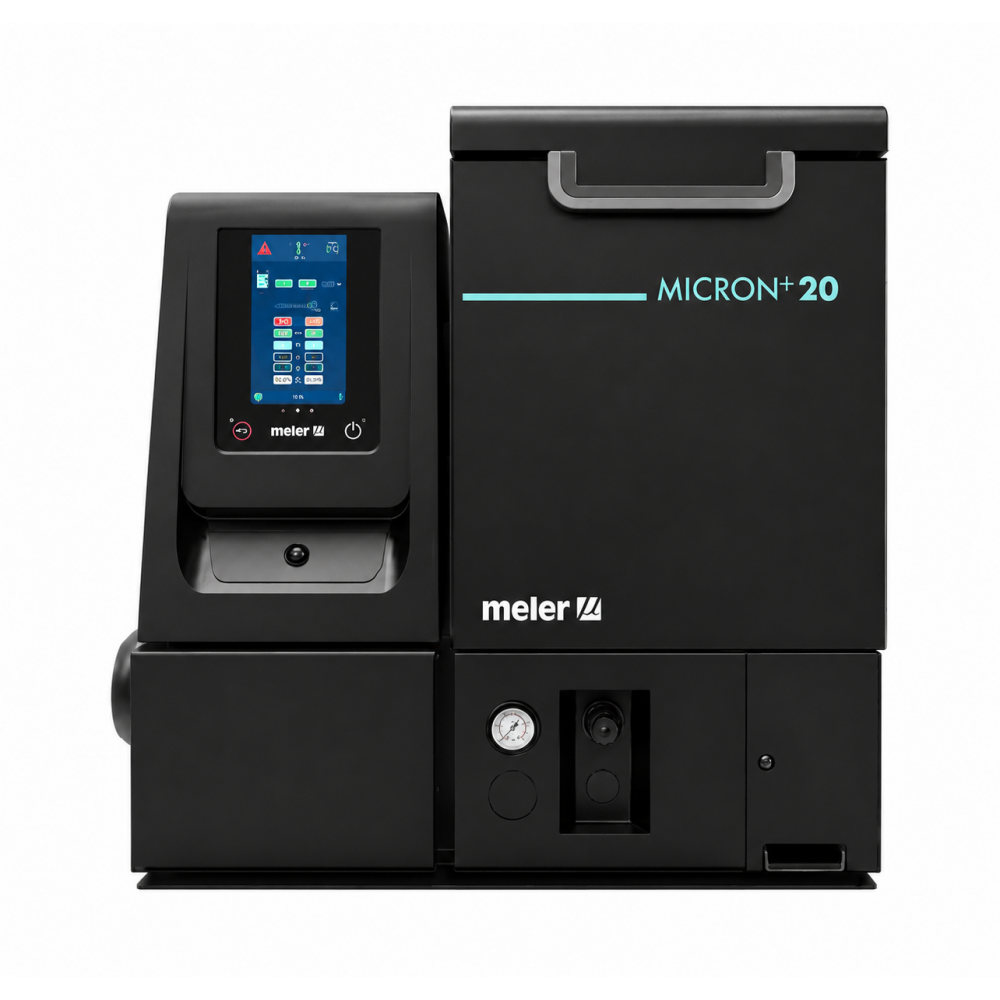

The MICRON+ 20 series hot melt adhesive melter is particularly suitable for packaging, corrugated cardboard, furniture, mattress, textile, woodworking, paper, label, and other industrial production lines. The unit helps ensure uniform adhesive melting, stable delivery to applicators, lower energy consumption, and easy integration into automated production processes.
Price shown is a starting price. The final price may vary depending on the selected configuration, pump type, number of outputs, and optional accessories.
Key Benefits
✔ MICRON+ 20 model – suitable for production lines with higher adhesive consumption
✔ Tank capacity – 19.7 L
✔ Melting capacity – up to 19 kg/h
✔ Up to 60% lower energy consumption
✔ 7-inch touchscreen for convenient and modern operation
✔ Uniform adhesive heating across the entire tank contact surface
✔ Reduced risk of adhesive overheating, charring, and degradation
✔ Cool Touch outer housing for improved operator safety
✔ Suitable for integration into automated production lines
✔ Remote access capability
✔ Ready for Industry 4.0 solutions
✔ Easy maintenance and cleaning, with a long service life

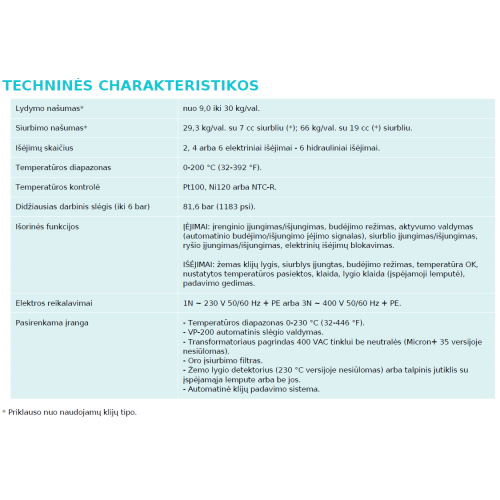

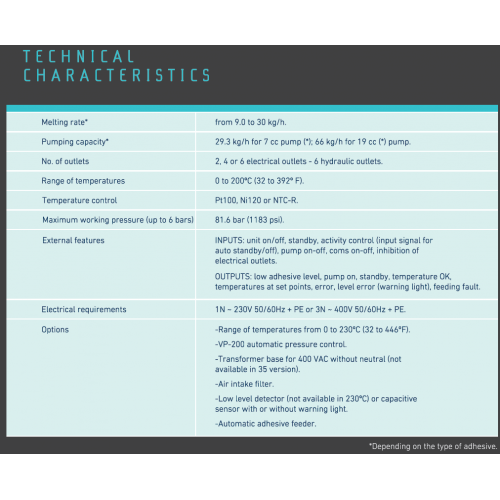

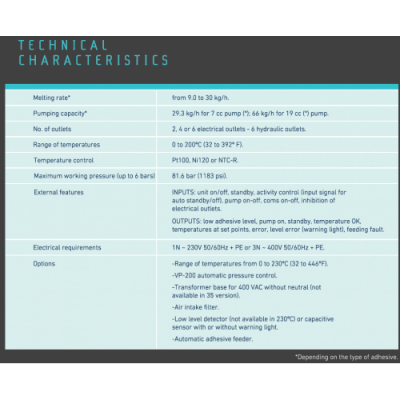

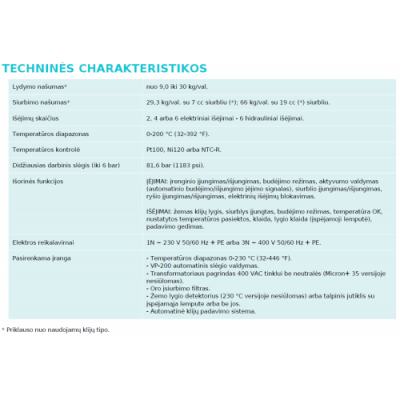

Technical Information
- Product type: Industrial hot melt adhesive melting and feeding unit
- Model: MELER MICRON+ 20
- Tank capacity: 19.7 L
- Melting capacity: Up to 19 kg/h
- Pumping capacity: Depends on the selected pump and unit configuration
- Number of electrical outputs: 2, 4, or 6, depending on configuration
- Number of hydraulic outputs: Up to 6
- Operating temperature range: 0–200°C
- Optional temperature range: Up to 230°C
- Temperature control: Pt100, Ni120, or NTC-R
- Maximum operating pressure: Up to 81.6 bar / 1183 psi
- Power supply: 1N ~ 230 V 50/60 Hz + PE or 3N ~ 400 V 50/60 Hz + PE
- Control: 7" touchscreen
- Communication protocols: MODBUS RTU, PROFIBUS, PROFINET, ETHERNET-IP
- Compatible adhesives: Hot melt adhesives in pellet or block form, depending on the system configuration and adhesive type
Actual performance depends on the type of adhesive used, operating temperature, pump, hydraulic configuration, and selected unit configuration.
User-Friendly Control
MELER MICRON+ 20 features a modern control system with a 7-inch touchscreen, providing quick access to the main unit settings and precise control of the adhesive melting, temperature, and delivery processes.
The control system allows users to:
- Control and configure different zones separately
- Assign individual names to zones
- Set operating schedules
- Manage alarms
- Use password protection
- Control the unit from the main production machine
- Use network connectivity
- Perform updates, backups, and data logging via USB
Connectivity and Integration
MICRON+ 20 is designed for integration into automated production systems and higher-capacity production lines. The unit supports industrial communication protocols:
MODBUS RTU • PROFIBUS • PROFINET • ETHERNET-IP
Remote access to the unit is also available, allowing users to control and configure the system and monitor operating parameters. This is particularly useful for manufacturing companies where process stability, performance monitoring, and integration of adhesive application equipment into the overall production management system are important.
Efficient Adhesive Heating
The MICRON+ 20 heating system ensures uniform temperature distribution across the entire tank contact surface. This helps reduce the formation of hot spots and the risk of adhesive overheating while maintaining more consistent adhesive quality, even during intensive operation.
This solution helps ensure:
- Uniform adhesive melting in the larger tank
- Stable adhesive delivery to applicators
- Reduced risk of adhesive degradation
- More efficient energy use
- Lower maintenance costs
- Reliable operation during longer production cycles
Optional Features
Depending on the selected MICRON+ 20 configuration, optional equipment and features may include:
- Automatic VP-200 pressure control
- Automatic adhesive feeding system
- Low adhesive level detector
- Air intake filter
- Integrated pattern / dispensing cycle controller
- Removable HMI screen
- Temperature range up to 230°C
- Various pump and output configurations
Applications
- Packaging lines
- Carton sealing and gluing
- Corrugated cardboard packaging production
- Furniture manufacturing
- Mattress production
- Textile industry
- Wood and panel production
- Label, paper, and printing industries
- Automatic and semi-automatic production lines
- Industrial hot melt adhesive dispensing processes
Who Is MICRON+ 20 Best Suited For?
MELER MICRON+ 20 is recommended for manufacturing companies that require a higher-capacity, higher-performance hot melt adhesive melter with modern controls, low energy consumption, and extensive production line integration capabilities.
This model is suitable when:
- Adhesive consumption is moderate to high
- Longer periods of continuous operation are required
- Multiple hoses or applicators are used simultaneously
- Stable adhesive delivery is essential during intensive production
- Convenient touchscreen control is required
- Integration into an automated production line is planned
- Industry 4.0, remote control, and data monitoring capabilities are important
MELER MICRON+ 20 is a professional solution for manufacturing companies looking for a higher-performance, energy-efficient hot melt adhesive melting and feeding system that can be easily integrated into their production processes.
