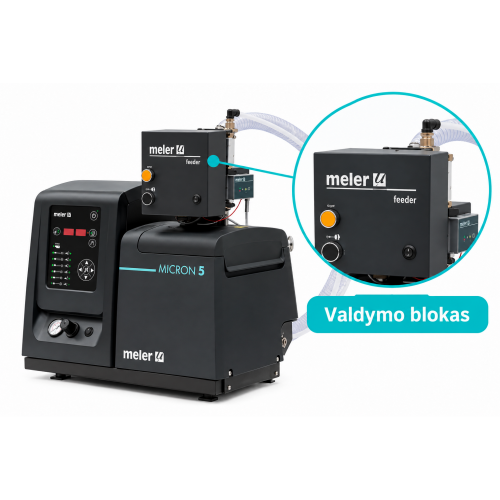

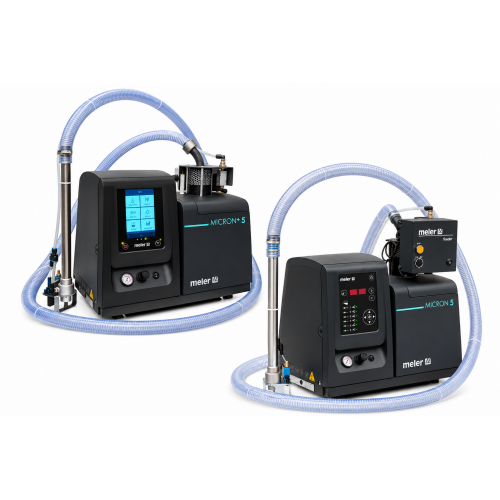

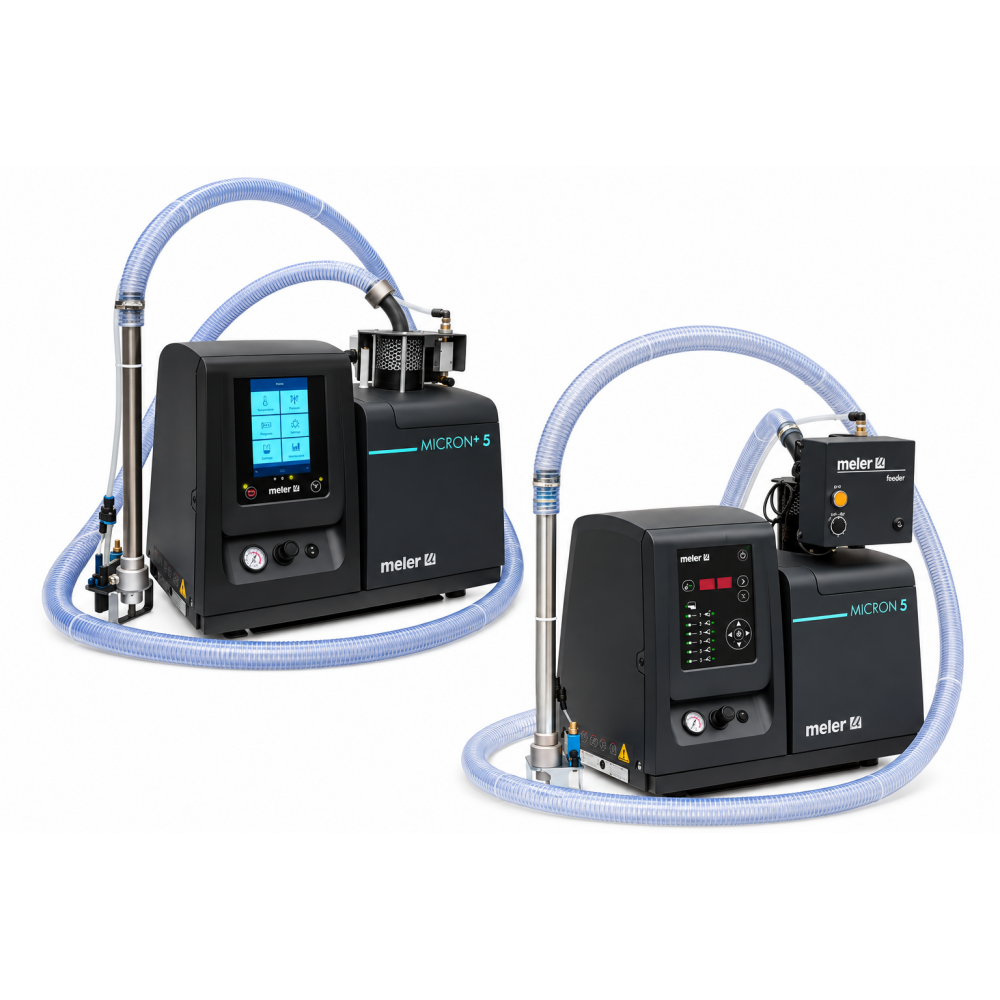

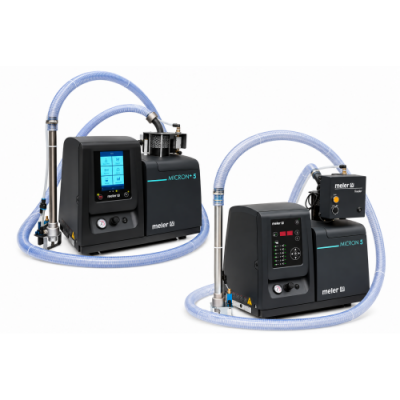

The closed feeding system helps protect the adhesive from contamination and degradation, while integrated light and sound alarms indicate low adhesive levels, feeding faults or an empty supply container. The system is compatible with the full range of MELER melters.

Main benefits
✔ Automatic adhesive granule feeding
✔ Reduced manual refilling
✔ Helps reduce contamination and carbonisation risk
✔ Light and sound alarms

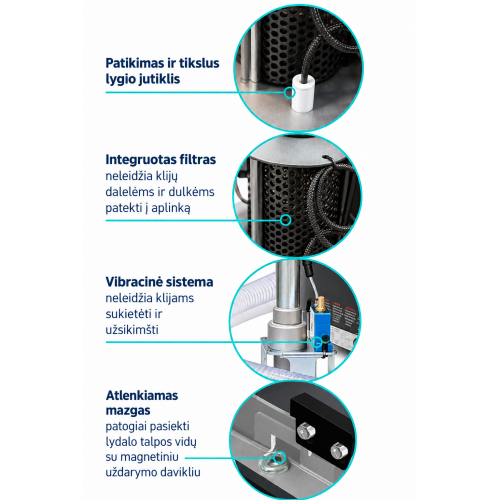

✔ Reliable adhesive level sensor

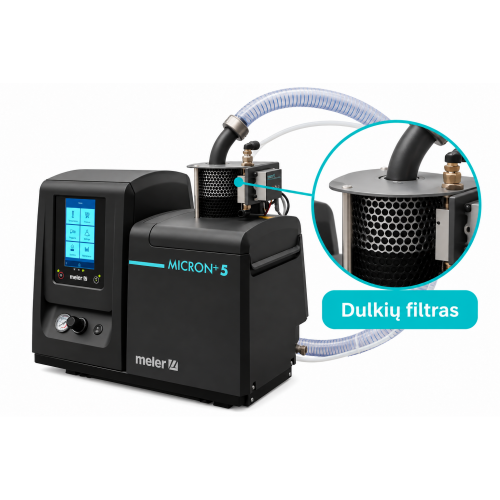

✔ Integrated filter
✔ Vibration system prevents granule compaction
✔ Hinged feeding unit for easier access
✔ Compatible with the full MELER melter range

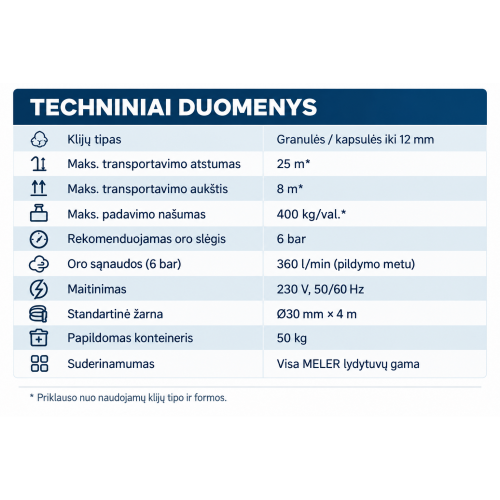

Technical information
- Adhesive type: capsules or granules up to 12 mm
- Max. conveying distance: up to 25 m*
- Max. conveying height: up to 8 m*
- Max. feeding capacity: up to 400 kg/h*
- Standard hose: Ø 30 mm × 4 m
- Recommended air pressure: 6 bar
- Air requirements: dry, filtered, non-lubricated air
- Air consumption at 6 bar: 360 l/min during feeding
- Power supply: 1N ~ 230 V, 50/60 Hz + PE
- Filter: 20 mesh (<1 mm)
- Compatibility: full MELER melter range
* Actual values depend on the type and shape of adhesive used.

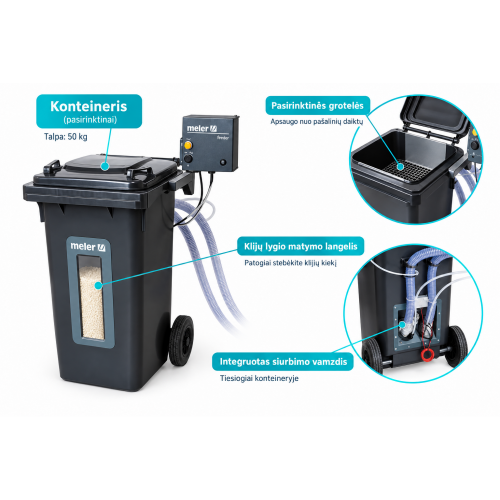

Optional 50 kg adhesive container
The system can be equipped with a 50 kg adhesive container to increase operating autonomy and reduce the frequency of manual refilling.
Optional equipment can include a minimum-level sensor, remote reset, additional grids and up to two adhesive outlets.
