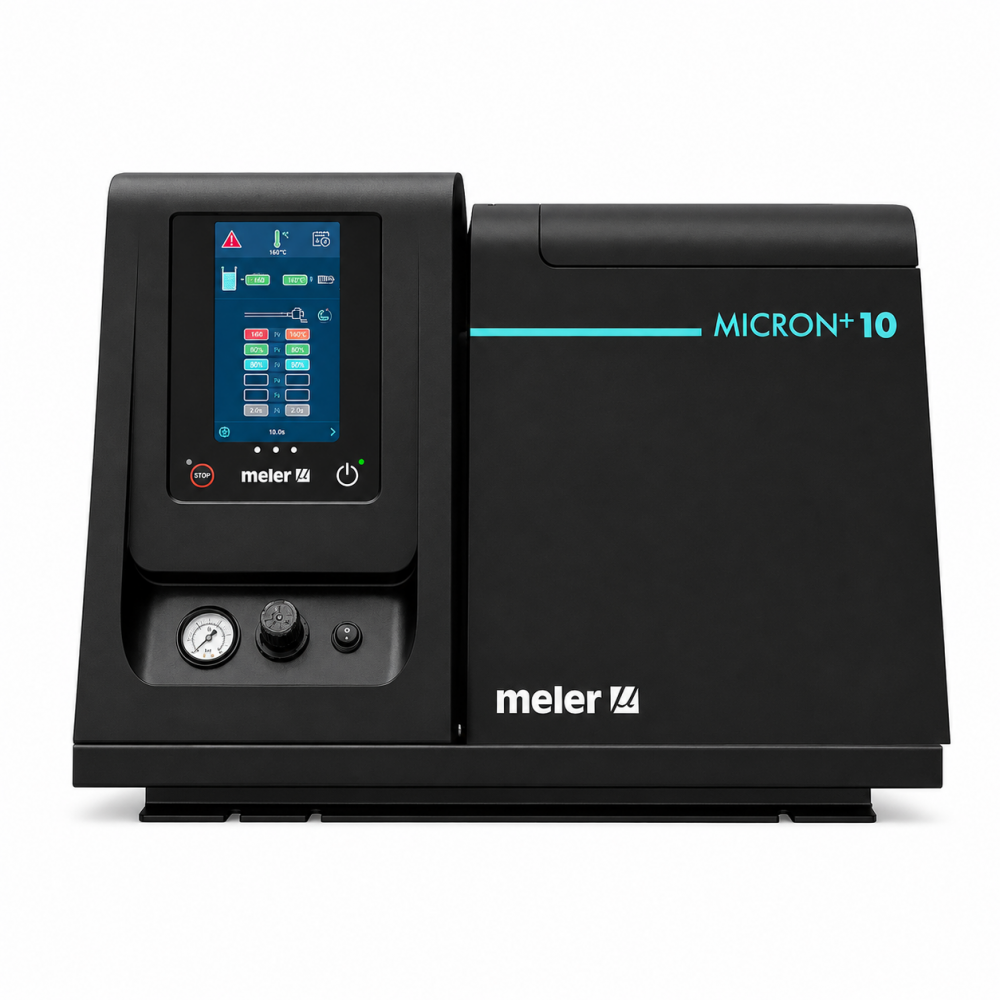

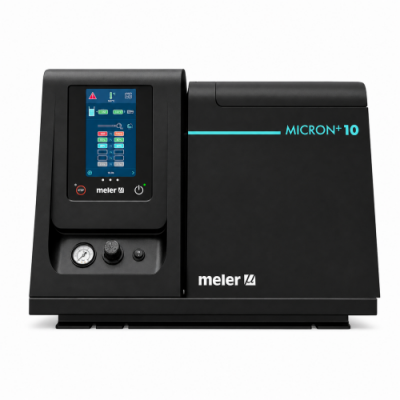

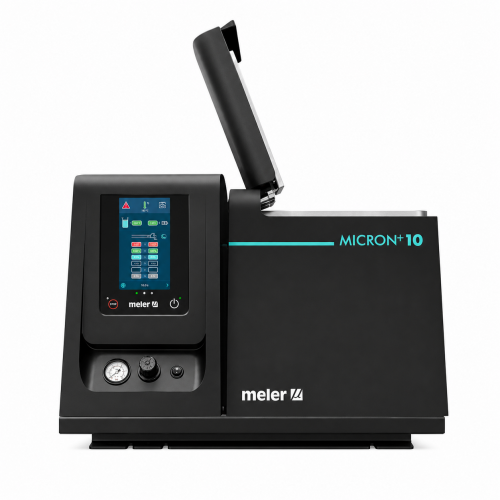

The MICRON+ 10 series hot melt adhesive melter is designed for packaging, carton sealing, furniture, mattress, textile, paper, label, and other production lines. The unit helps ensure uniform adhesive melting, stable delivery, lower energy consumption, and easy integration into automated production processes.
Key Benefits
✔ MICRON+ 10 model – suitable for production lines with moderate adhesive consumption
✔ Tank capacity – 9.7 L
✔ Melting capacity – up to 13.5 kg/h
✔ Up to 60% lower energy consumption
✔ 7-inch touchscreen for convenient and modern operation
✔ Uniform adhesive heating across the entire tank contact surface
✔ Reduced risk of adhesive overheating, charring, and degradation
✔ Cool Touch outer housing for improved operator safety
✔ Suitable for integration into automated production lines
✔ Remote access capability
✔ Ready for Industry 4.0 solutions
✔ Easy maintenance and long service life

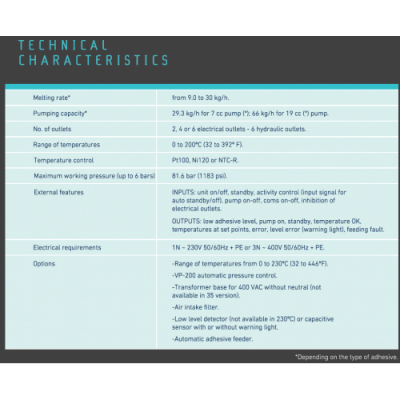

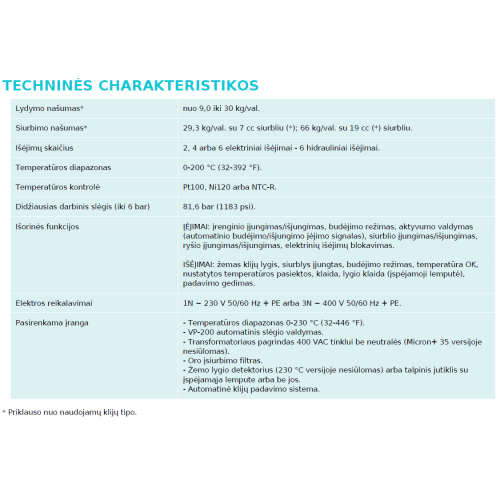

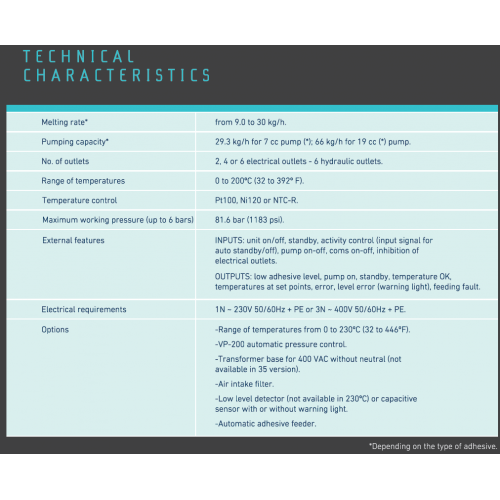

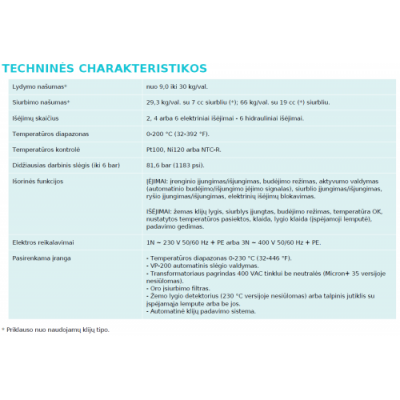

Technical Information
- Product type: Industrial hot melt adhesive melting and feeding unit
- Model: MELER MICRON+ 10
- Tank capacity: 9.7 L
- Melting capacity: Up to 13.5 kg/h
- Pumping capacity: Depends on the selected pump and configuration
- Number of electrical outputs: 2, 4, or 6, depending on configuration
- Number of hydraulic outputs: Up to 6
- Operating temperature range: 0–200°C
- Optional temperature range: Up to 230°C
- Temperature control: Pt100, Ni120, or NTC-R
- Maximum operating pressure: Up to 81.6 bar / 1183 psi
- Power supply: 1N ~ 230 V 50/60 Hz + PE or 3N ~ 400 V 50/60 Hz + PE
- Control: 7" touchscreen
- Communication protocols: MODBUS RTU, PROFIBUS, PROFINET, ETHERNET-IP
- Compatible adhesives: Hot melt adhesives in pellet or block form, depending on the system configuration and adhesive type
Actual performance depends on the type of adhesive used, operating temperature, pump, and selected unit configuration.
User-Friendly Control
MELER MICRON+ 10 features a modern control system with a 7-inch touchscreen, providing quick access to the main unit settings and convenient control of the adhesive melting and delivery process.
The control system allows users to:
- Control and configure different zones separately
- Assign individual names to zones
- Set operating schedules
- Manage alarms
- Use password protection
- Control the unit from the main production machine
- Use network connectivity
- Perform updates, backups, and data logging via USB
Connectivity and Integration
MICRON+ 10 is designed for integration into modern automated production systems. The unit supports industrial communication protocols:
MODBUS RTU • PROFIBUS • PROFINET • ETHERNET-IP
Remote access to the unit is also available, allowing users to control and configure the system and monitor operating parameters. This is particularly useful for companies seeking to improve production process efficiency and integrate adhesive application equipment into their overall production system.
Efficient Adhesive Heating
The MICRON+ 10 heating system ensures uniform temperature distribution across the entire tank contact surface. This helps reduce the formation of hot spots and the risk of adhesive overheating while ensuring more consistent adhesive quality.
This solution helps ensure:
- Uniform adhesive melting
- Stable adhesive delivery
- Reduced risk of adhesive degradation
- Lower energy consumption
- More efficient production processes
- Lower maintenance costs
Optional Features
Depending on the selected MICRON+ 10 configuration, optional equipment and features may include:
- Automatic VP-200 pressure control
- Automatic adhesive feeding system
- Low adhesive level detector
- Air intake filter
- Integrated pattern / dispensing cycle controller
- Removable HMI screen
- Temperature range up to 230°C
- Various pump and output configurations
Applications
- Packaging lines
- Carton sealing and gluing
- Corrugated cardboard packaging production
- Furniture manufacturing
- Mattress production
- Textile industry
- Wood and panel production
- Label, paper, and printing industries
- Automatic and semi-automatic production lines
- Industrial hot melt adhesive dispensing processes
Who Is MICRON+ 10 Best Suited For?
MELER MICRON+ 10 is recommended for manufacturing companies that require a higher-capacity yet still compact hot melt adhesive melter with modern controls, low energy consumption, and extensive production line integration capabilities.
This model is suitable when:
- Adhesive consumption is higher than in smaller production lines
- Longer periods of continuous operation are required
- Precise and stable adhesive delivery is important
- Convenient touchscreen control is required
- Integration into an automated production line is planned
- Industry 4.0, remote control, and data monitoring capabilities are important.
MELER MICRON+ 10 is a professional solution for manufacturing companies looking for an energy-efficient, reliable hot melt adhesive melting and feeding system that can be easily integrated into their production processes.
Contact us for information on the exact MICRON+ 10 configuration, optional accessories, pump type, and final price.
