Technical information
- Manufacturer: MELER Gluing Solutions
- Product type: air flow / pressure regulator assembly
- Application: SWIRL Hot-Melt adhesive application
- Part number: 29000012

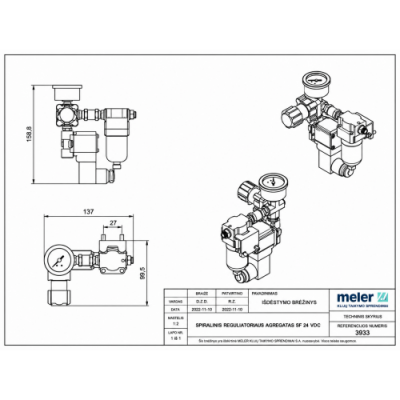

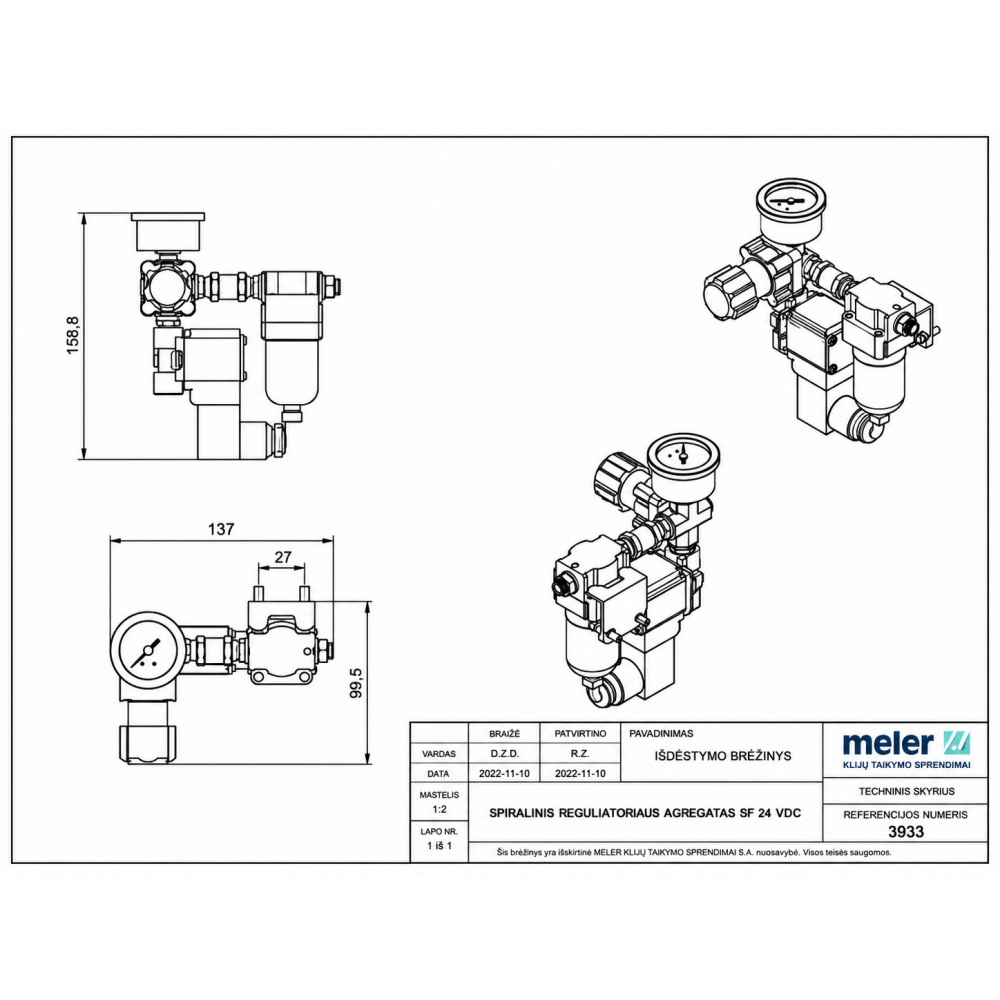

- Drawing reference: 3933
- Control voltage: 24 V DC
- Maximum working pressure: up to 6 bar
- Width: 137 mm
- Height: 158.8 mm
- Depth: 99.5 mm
- Mounting hole centre distance: 27 mm
Integrated components
✔ Pressure regulator
✔ Pressure gauge
✔ Air filter / moisture separator
✔ 24 V DC solenoid valve
Benefits
✔ Precise air flow control for SWIRL application
✔ Helps maintain consistent spiral adhesive patterns
✔ Integrated air filtration
✔ Easy pressure monitoring
✔ Compact, ready-to-install assembly
✔ Suitable for professional Hot-Melt systems
Data sheet
Specific References
